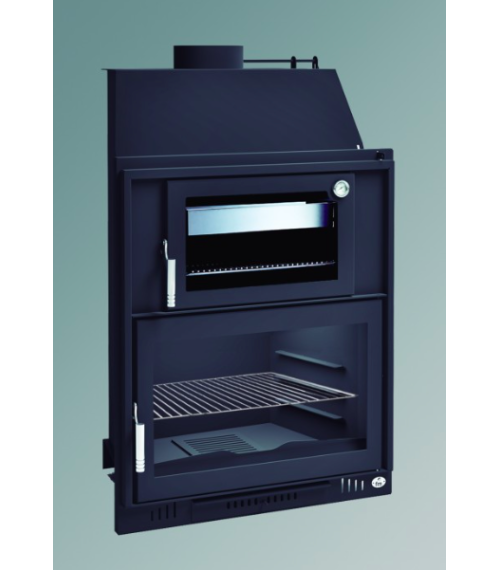

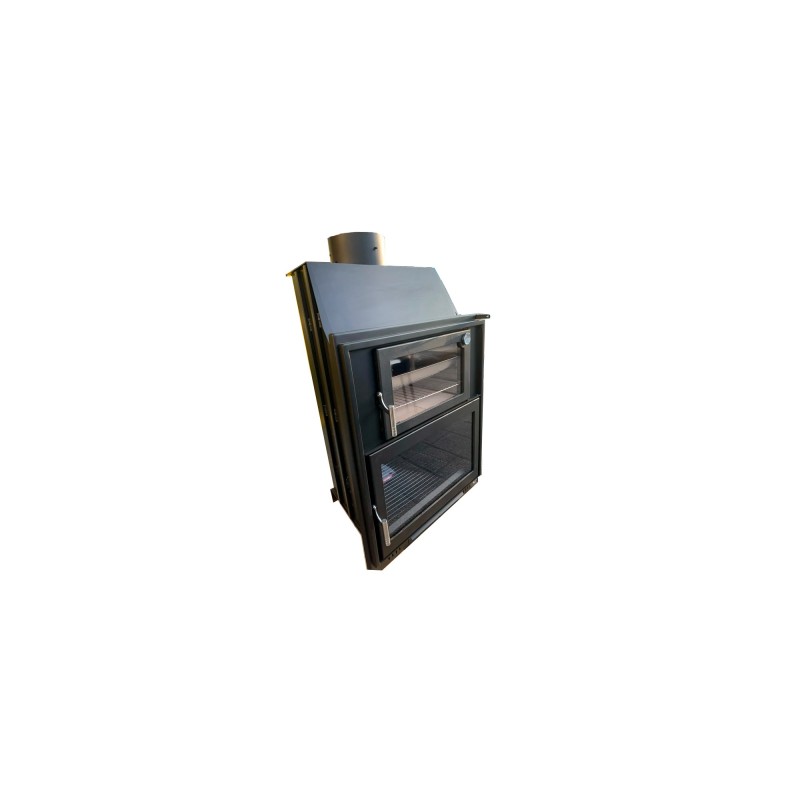

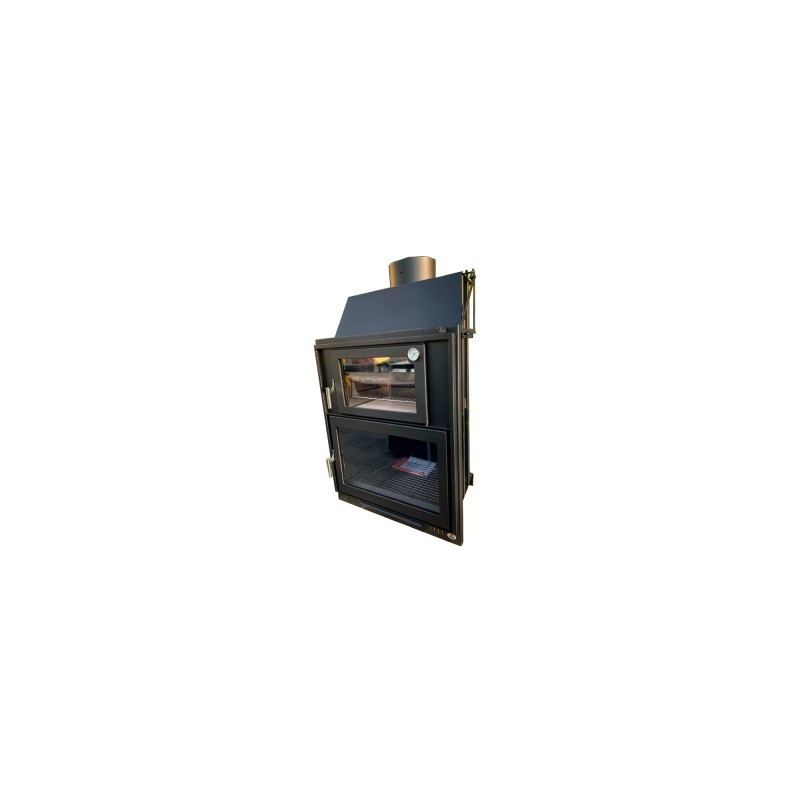

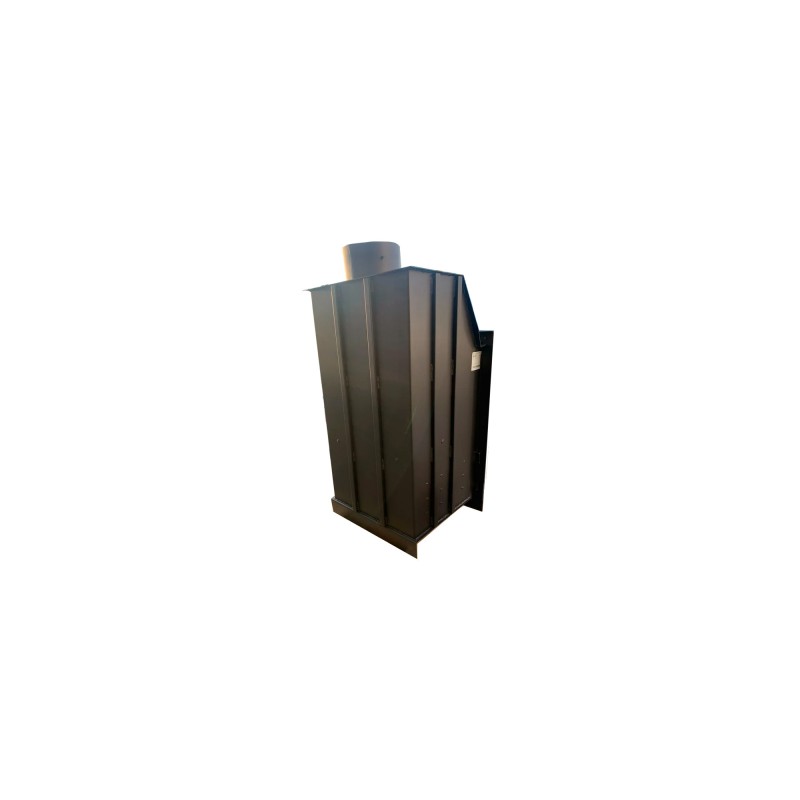

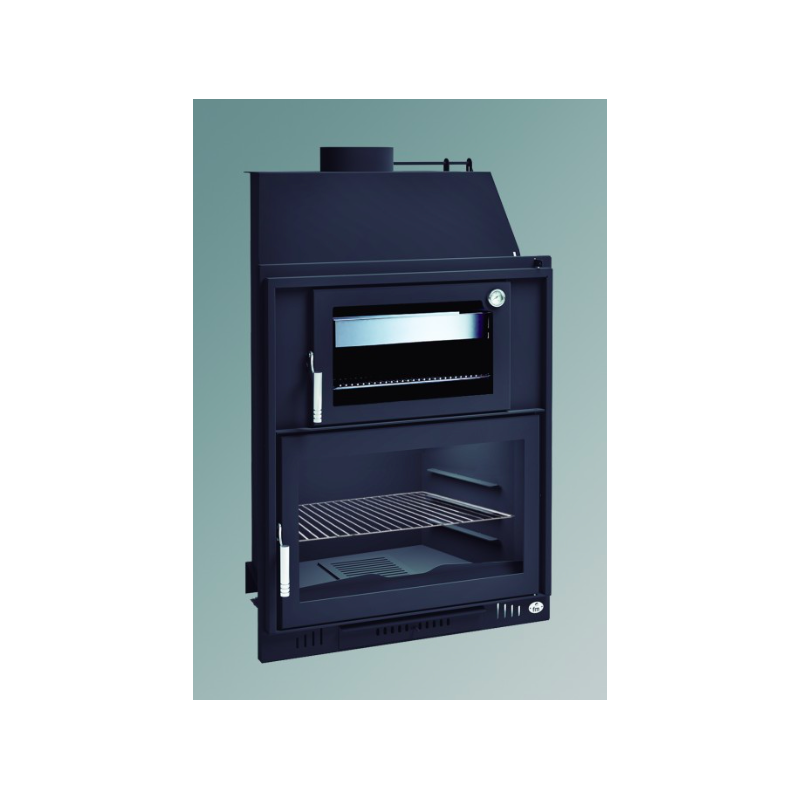

The BH-180 HP wood-fired barbecue with a wrap-around top oven is designed to offer both grilling and baking in a single unit. It is constructed of steel (up to 4 mm thick) with a heat-resistant black paint finish (up to 800°C ), and features a cast iron grill , a removable ash drawer , and primary air control . It also includes a ceramic glass surface (up to 750°C ), a 250 mm male top flue outlet , a draft diverter valve , and a removable baffle .
The BH-180 HP wood-fired barbecue with a wrap-around top oven is designed to offer both grilling and baking in a single unit. It is constructed of steel (up to 4 mm thick) with a heat-resistant black paint finish (up to 800°C ), and features a cast iron grill , a removable ash drawer , and primary air control . It also includes a ceramic glass surface (up to 750°C ), a 250 mm male top flue outlet , a draft diverter valve , and a removable baffle .
| Firewood inlet | 340 × 675 mm |
| Combustion chamber depth | 470 mm |
| Trunk size | 700 mm |
| Oven entrance | 275 × 500 mm |
| Oven depth | 360 mm |

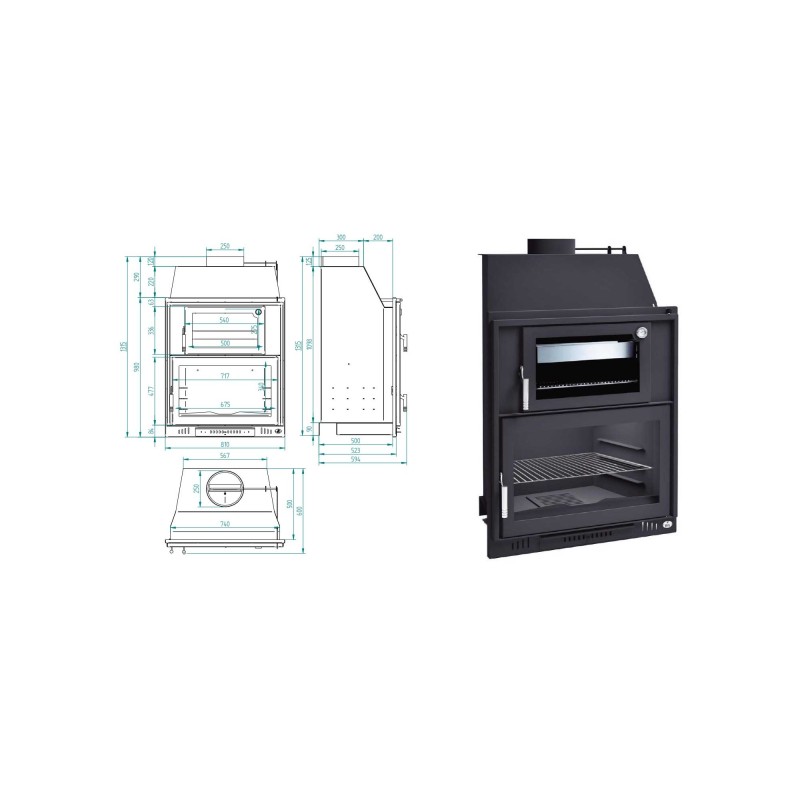

| Installation dimensions (Height × Width × Depth) | 1315 × 740 × 500 mm |
| Front panel dimensions (Height × Width) | 980 × 810 mm |
| External dimensions (Height × Width × Depth) | 1315 × 810 × 600 mm |
| Weight | 140 kg |
For the use of this equipment inside a home, the installation of a forced aspiration system is recommended for the proper evacuation of gases.
